板式换热器

板式换热器

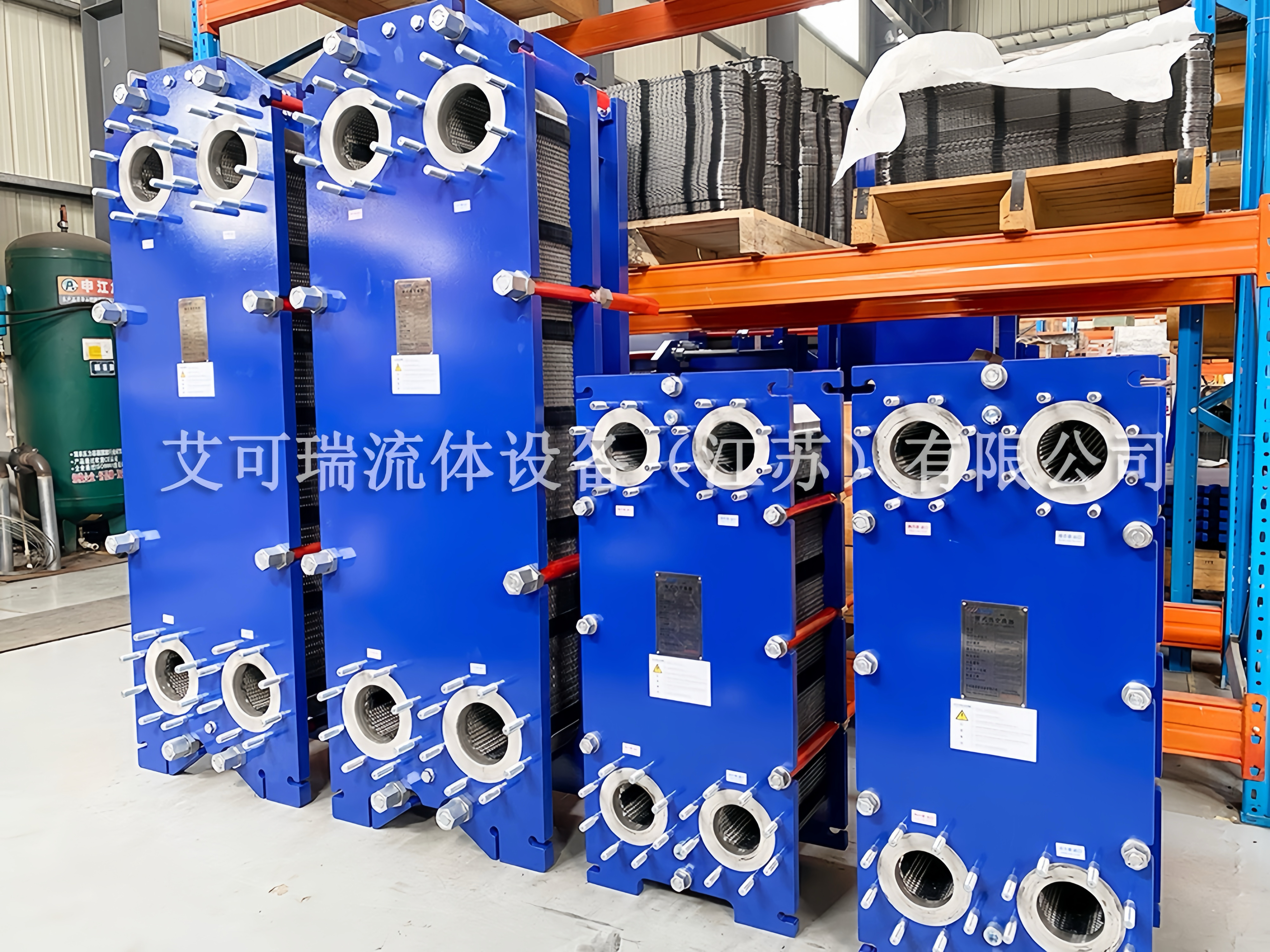

产品说明:艾可瑞板式换热器是由一组波纹金属板组成,板上有孔,供传热的两种液体通过。金属板片安装在一个侧面有固定板和活动压紧板的框架内,并用夹紧螺栓夹紧。板片上装有密封垫片,将液体通道密封,并且引导流体交替地流至各自的通道内。液体的流量、物理性质、压力降和温度差决定了板片的数量尺寸,液体的化学性能、腐蚀特性决定了板片及胶垫的材质,不同的波纹板结构设计不公提高了湍流程度,并且形成许多支撑点,足以承受介质间的压力差。
Product Description: Aike Rui plate heat exchanger is composed of a group of corrugated metal plate, perforated plate, two kinds of liquid for heat transfer through. The sheet metal is mounted in a frame with a fixed plate and a movable compression plate on the side and is clamped by a clamping bolt. The plate is provided with a gasket to seal the liquid passages and to guide fluid flow alternately to the respective passages. Flow, poor physical properties, pressure drop and liquid temperature determines the number of plate size, characteristics and chemical properties, corrosive liquid determines the plate and the rubber pad material, design of corrugated plate structure of different injustice improve the extent of turbulence, and the formation of many points of support, to withstand the pressure difference between the medium.

金属板和活动压紧板安装在悬挂梁上,并由下导杆定位,而杆端则固定在支撑柱上,但如果其中一种液体或两种液体在换热器内不止通过一次,则接口应开在因定板和活动压紧板上。
A metal plate and a movable plate is installed on the hanging beam, and the positioning guide rod, and the rod end is fixed on the support column, but if one of the two kinds of liquid or liquid in the heat exchanger through more than once, then the interface should be opened in the fixed plate and a movable plate.

板片波纹角度大小的合理搭配,可以较大提高单位换热面积的换热效果、调节液体的阻力、节省换热面积,其结果降低投资成本,缩短投资回收时间。
The reasonable collocation of the plate waviness angle can greatly improve the heat exchange effect of the unit heat exchange area, regulate the resistance of the liquid and save the heat exchange area, and consequently reduce the investment cost and shorten the investment recovery time.

艾可瑞板式换热器有AL系列、ATL系列、A系列、冷凝器、蒸发器、半焊工、全焊式等几大系列百余种板型。各种型号都有深波纹、浅波纹、大角度、小角度等,完全确保满足不同用户的需要,特殊工况可按用户需要专门设计制造。
Aike Rui heat exchanger AL series, ATL series, A series, condenser, evaporator, welder, semi welded plate for several hundred series. All kinds of models have deep ripple, shallow corrugation, big angle and small angle, etc., and fully meet the needs of different users. The special working conditions can be designed and manufactured according to the user's needs.

板片材料:
Sheet material:
不锈钢:SUS304、316、316L、310S、904
Stainless steel: SUS304, 316, 316L, 310S, 904
钛及钛钯合金:TAi、TAi-Pd
Ti and Ti Pd alloy: TAi, TAi - Pd
哈氏合金:C276、D205、B2G
Hastelloy: C276, D205, B2G
镍:Ni200
Nickel: Ni200
钼:254MO
Molybdenum: 254MO
产品参数:
Product parameter:
压力范围:不大于2.5MPa
Pressure range: no more than 2.5MPa
最大处理量:1500㎥/h
Maximum capacity: 1500 /h
最小处理量:1㎥/h
Minimum quantity: 1 /h
组装面积范围:800㎡
The assembly area: 800 square meters
温度大体范围:-50——350℃
Temperature range: -50 - 350 DEG C
最大接口:DN350
Max interface: DN350
最小接口:DN32
Minimum interface: DN32
热负荷:10MW
Heat load: 10MW
板片厚度:0.5——0.8mm
Sheet thickness: 0.5 - 0.8mm
