电磁流量计

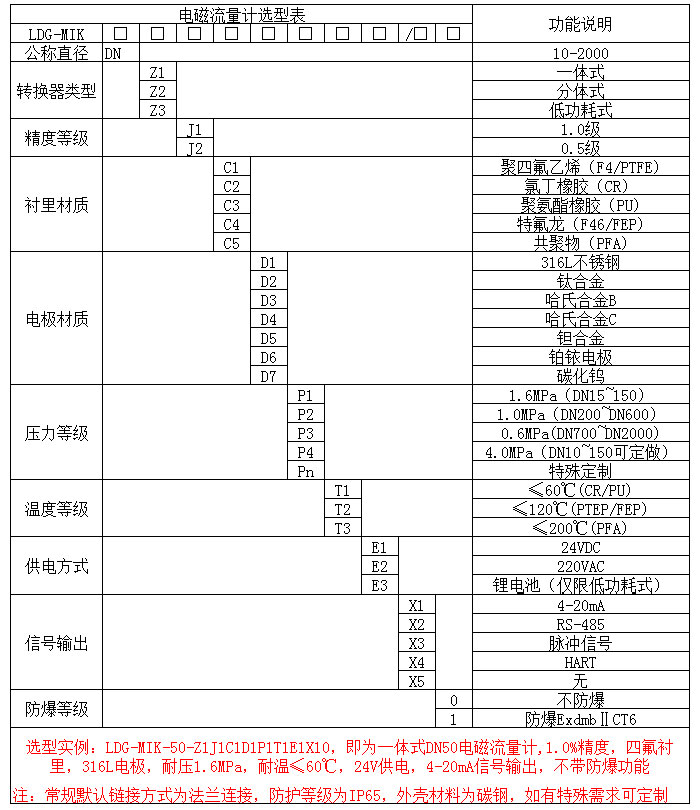

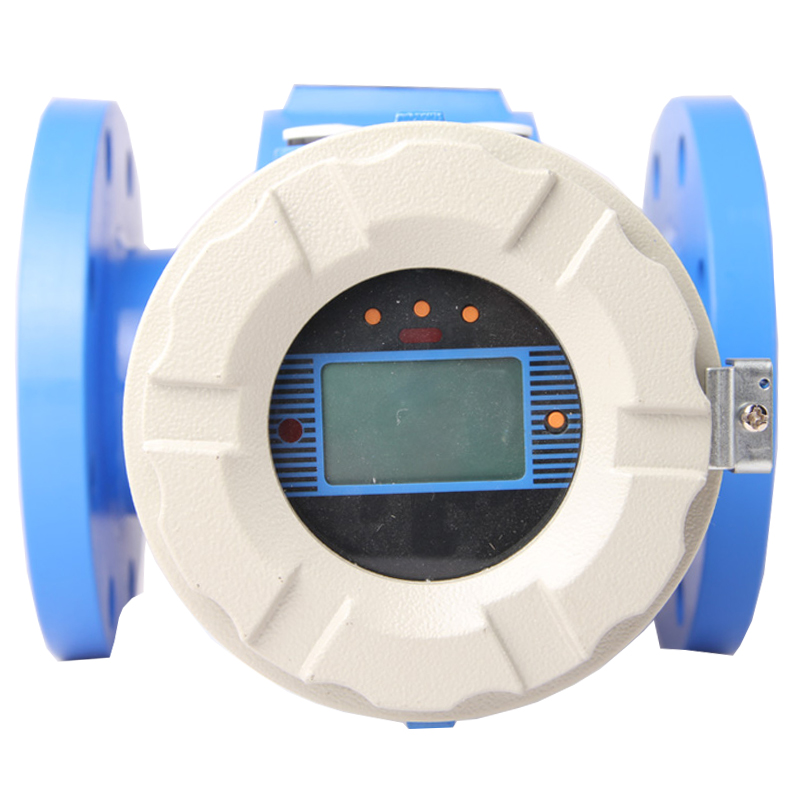

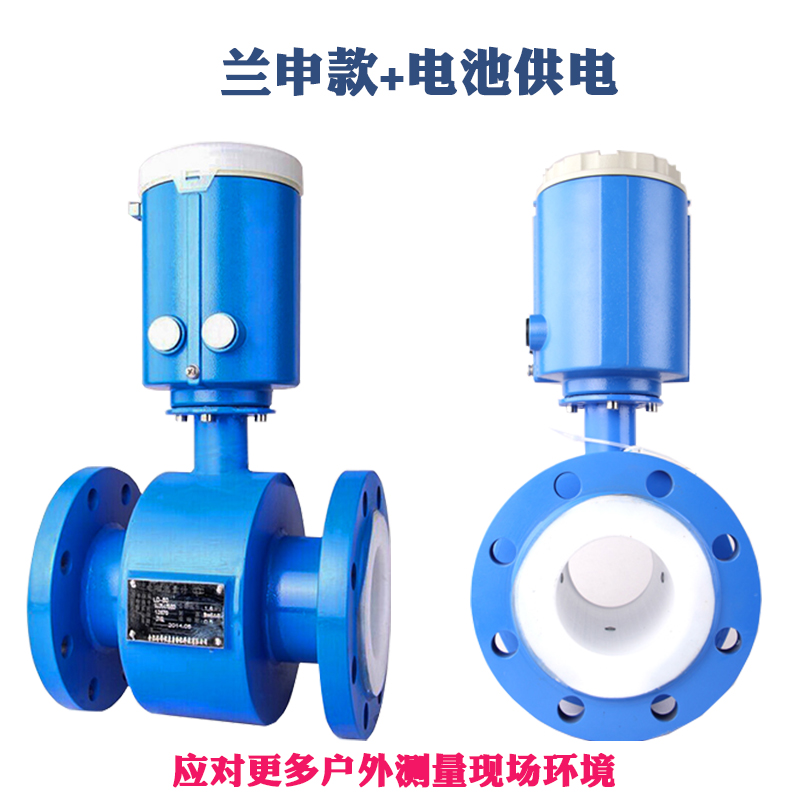

电磁流量计(图1)电磁流量计(图2)电磁流量计(图3)

产品名称:智能直显型电磁流量计
Product Name: intelligent straight phenotype electromagnetic flowmeter

精度等级:±0.5%R(千分之五)
Accuracy class: + 0.5%R (5/1000)

公称压力:4.0MPA(DN10-DN150)
Nominal pressure: 4.0MPA (DN10-DN150)

(其他规格可定制)
(other specifications can be customized)
安装方式:法兰安装(默认);加持安装(定制)、卡箍安装(定制)
Installation: flange installation (default), blessing installation (custom), clamp installation (custom)

电极类型:316L电极(标配);HB/HC合金电极(强酸碱环境);钛电极;钽电极;碳化钨电极;铂金电极
Electrode type: 316L electrode (standard); HB/HC alloy electrode (strong acid base environment); titanium electrode; tantalum electrode; tungsten carbide electrode; platinum electrode

衬里材质:氯丁橡胶(CR);聚四氟乙烯(F4);聚氨酯橡胶(PU);聚四氟乙丙烯(F46)
Lining material: chloroprene rubber (CR); polytetrafluoroethylene (F4); polyurethane rubber (PU); polytetrafluoroethylene (F46)

量 程 比:20:1
Range ratio: 20:1

工作环境:传感器-25-180℃;转化器:-10-60℃(≥80℃需定制)
Working environment: C: -10-60 sensor -25-180 converter; (C = 80 DEG C to order)

流体需求:导电介质(电导率≥5US/CM液体)
The fluid needs: conductive medium (liquid conductivity is greater than or equal to 5US/CM)



电磁流量计(图4)
